Điện thế đầu vào: 240v
Công suất điện phân muối: 24 gram/hr
Khớp nối với hệ đường ống phi 63
Phù hợp hồ bơi tối đa 80 m3
Áp suất làm việc tối đa: 250kPa / 36psi / 2,5bar
Đến với Biotechpool chắc chắn quý khách sẽ tìm được một sản phẩm ưng ý cho mình. Bởi chúng tôi làm tốt từ khâu thiết kế, tư vấn lựa chọn thiết bị, xây dựng thi công hoàn thiện hạng mục hồ bơi và spa tại Việt Nam

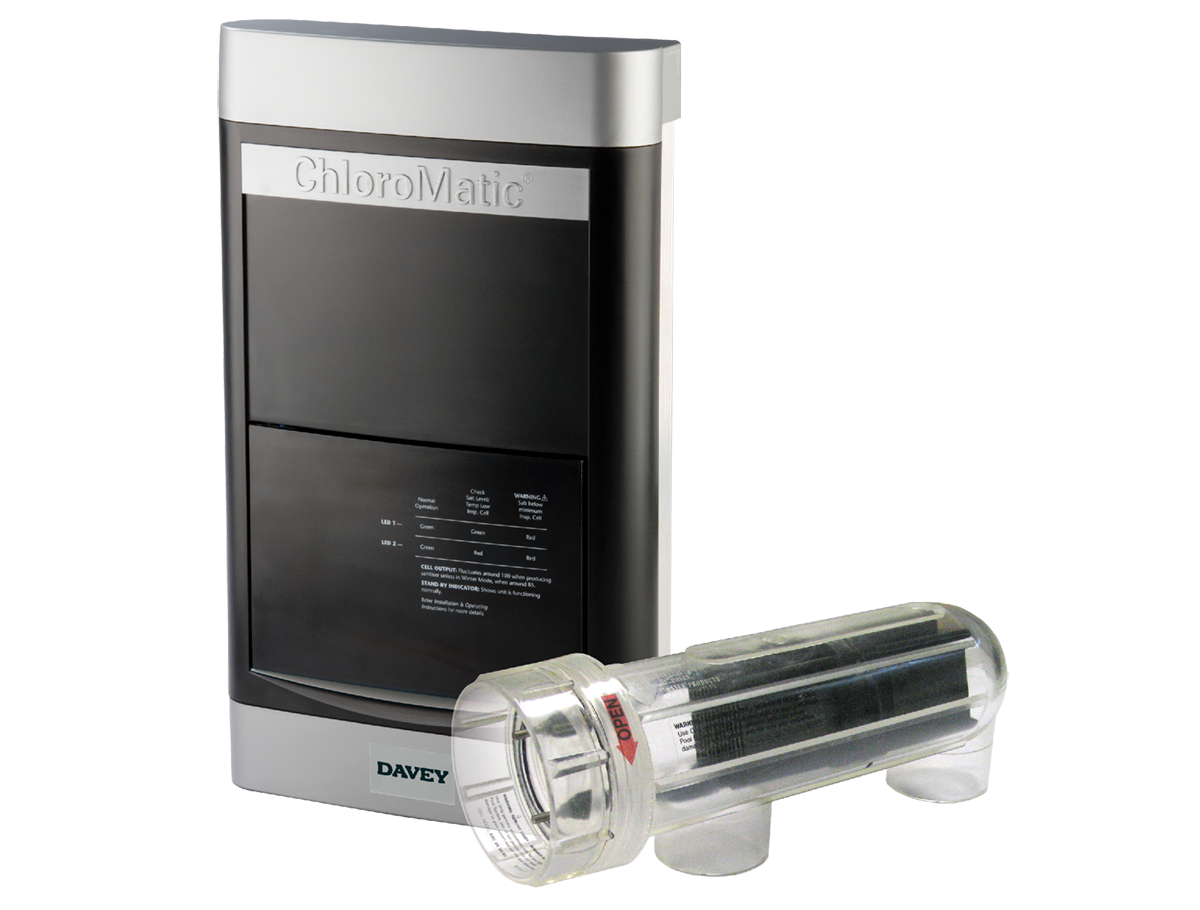

Davey ECO - matic ESC8000
Model | Description | Output g/Hr | Output lbs/day* |
---|---|---|---|
ECO-matic™ with reverse polarity cell | |||
MEMS16USA | ECO-matic™ ESC6000 - 220V | 16 | 0.84 |
MEMS16USA110 | ECO-matic™ ESC6000 - 110V | 16 | 0.84 |
MEMS24USA | ECO-matic™ ESC7000 - 220V | 24 | 1.24 |
MEMS24USA110 | ECO-matic™ ESC7000 - 110V | 24 | 1.24 |
MEMS36USA | ECO-matic™ ESC8000 - 220V | 36 | 1.90 |
MEMS50USA^ | ECO-matic™ ESC9000 - 220V | 50 | 2.64 |
*lbs/day output is based on 24 hour operation – the above units are recommended to be operated 8 hours per day and should be sized accordingly.
Pool sizing estimates for ESC9000 are based on a 12 hour filtration cycle. Pools in hot climates may require a larger unit (hot climate = average temperature during pool season 86ºF or above).
Consult your dealer/builder/contractor for more information.
• In areas with hard water, reverse polarity cell systems may require occasional manual cleaning.
Dimensions (mm/inches) | |||||||||
---|---|---|---|---|---|---|---|---|---|
Power Supply Enclosure | |||||||||
Model | Height | Width | Depth | Mounting holes | |||||
MEMS16USA MEMS16USA110 MEMS24USA MEMS24USA110 MEMS36USA MEMS50USA |
390 / 15.4 | 235 / 9.25 | 130 / 5.12 | 66 / 2.6 (from centre to centre) |
Cell Housing | |||||
---|---|---|---|---|---|
Model | Height | Width | Diameter | Inlet/Outlet | plumbing holes |
MEMS16USA MEMS16USA110 MEMS24USA MEMS24USA110 MEMS36USA |
140 / 5.51 | 370 / 14.6 | 120 / 4.72 | 60 / 2.36 Actual ID |
195 / 7.68 (from centre to centre) |
MEMS50USA | 259.6 / 10.2 | 131 / 5.15 | N/A | N/A | 299.5 / 11.8 (from centre to centre) |
Model | Description | Output g/Hr | Output lbs/day* |
---|---|---|---|
EcoSalt™ with reverse polarity cell | |||
MES13USA | Ecosalt™ 13 - 220V | 13 | 0.66 |
MES13USA110 | Ecosalt™ 13 - 110V | 13 | 0.66 |
MES20USA | Ecosalt™ 20 - 220V | 20 | 1.06 |
MES20USA110 | Ecosalt™ 20 - 110V | 20 | 1.06 |
MES26USA | Ecosalt™ 26 - 220V | 26 | 1.37 |
MES26USA110 | Ecosalt™ 26 - 110V | 26 | 1.37 |
*lbs/day output is based on 24 hour operation – the above units are recommended to be operated 8 hours per day and should be sized accordingly.
Consult your dealer/builder/contractor for more information.
• In areas with hard water, reverse polarity cell systems may require occasional manual cleaning.
Dimensions (mm/inches) | |||||||||
---|---|---|---|---|---|---|---|---|---|
Power Supply Enclosure | |||||||||
Model | Height | Width | Depth | Mounting holes | |||||
MES13USA MES13USA110 MES20USA MES20USA110 MES26USA MES26USA110 |
312 / 12.3 | 235 / 9.25 | 130 / 5.12 | 66 / 2.6 (from centre to centre) |
Cell Housing | |||||
---|---|---|---|---|---|
Model | Height | Width | Diameter | Inlet/Outlet | plumbing holes |
MES13USA MES13USA110 MES20USA MES20USA110 MES26USA |
MES26USA110105 / 4.13270 / 10.680 / 3.1550 / 1.97
Actual ID190 / 7.48
(from centre to centre)
Model | Description | Output g/Hr | Output lbs/day* |
---|---|---|---|
ESC MAX™ with reverse polarity cell | |||
M4920USA | ESC MAX™ | 50 | 2.64 |
M4921USA | ESC MAX Plus | 1100 | 5.28 |
VIDEO MÁY TẠO CLO TỪ MUỐI
